Name: High Quality Weineng AD Dry Air Generator | Advanced Industrial Drying Solution
SKU: AD001

Description

The Weineng AD Dry Air Generator is a state-of-the-art industrial drying system designed to deliver exceptionally dry air with a dew point as low as -70°C. This high-performance equipment operates with a power rating of 25KW and requires a three-phase three-wire 380V/50HZ power supply, making it suitable for various industrial environments. With a working pressure range of 0.6~0.8MPa and adjustable air supply pressure from 0.02-0.8MPa, the Weineng AD Dry Air Generator offers flexibility and reliability in demanding applications. The system is capable of delivering a gas supply volume of ≥200m³/h, ensuring efficient and continuous operation.

The Weineng AD Dry Air Generator is specifically engineered for critical applications in power equipment maintenance and installation. It is ideally suited for use in transformers and reactors where maintaining internal dryness is crucial to prevent moisture damage to insulation materials. Unlike traditional nitrogen drying methods, the Weineng AD Dry Air Generator provides a safer, more economical, and more convenient solution. It ensures that workers can safely perform maintenance inside equipment without risk of oxygen deficiency.

The generator is particularly valuable during overnight operations where equipment can be sealed and maintained with dry air pressure between 0.02MPa~0.03MPa, unaffected by external climate conditions. This makes the Weineng AD Dry Air Generator an essential tool for power generation facilities, electrical substations, and industrial plants where moisture control is critical to equipment longevity and operational safety.

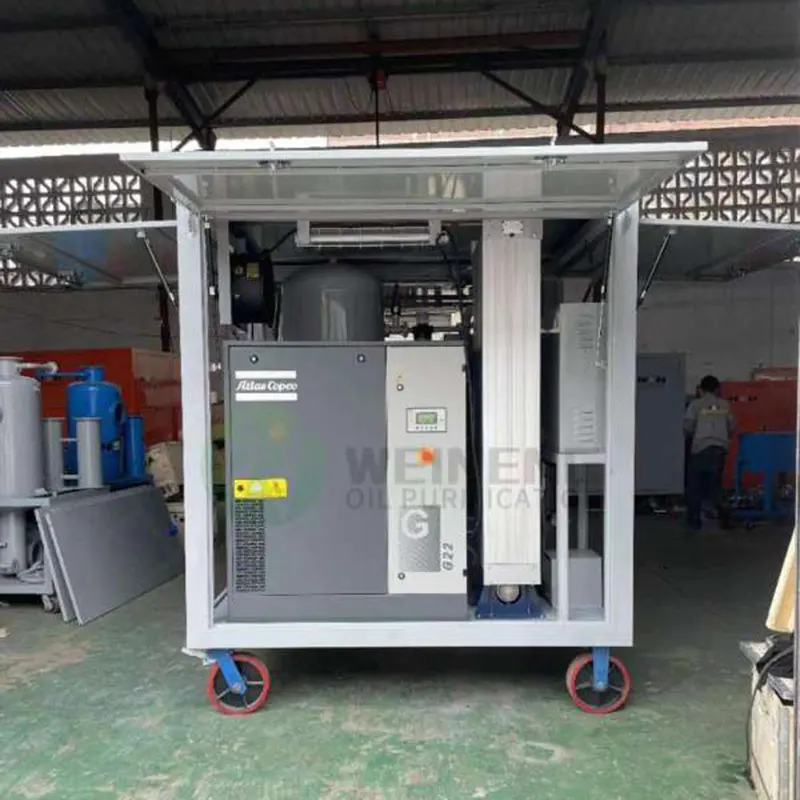

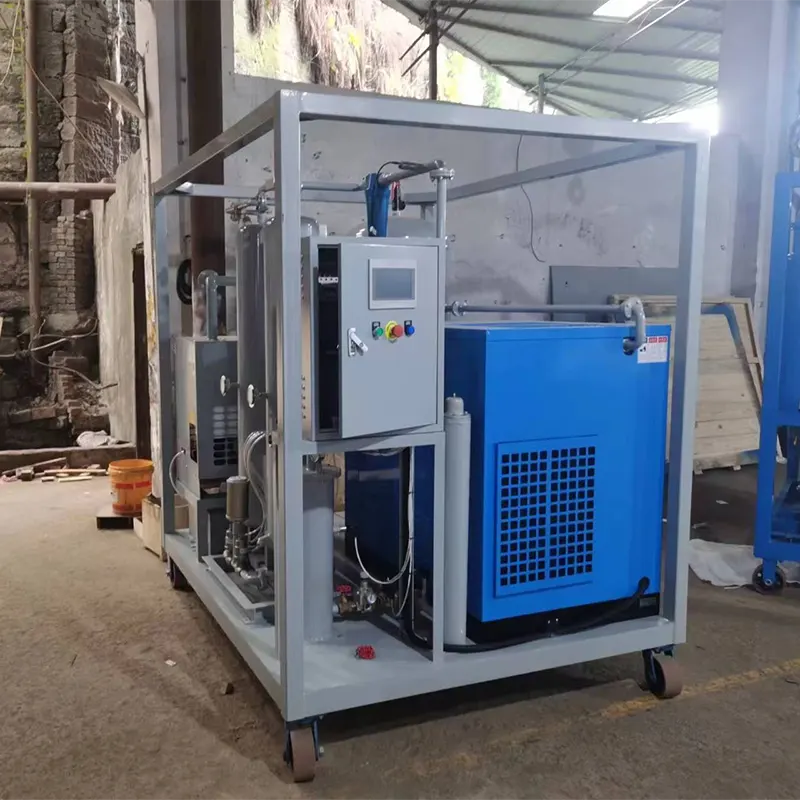

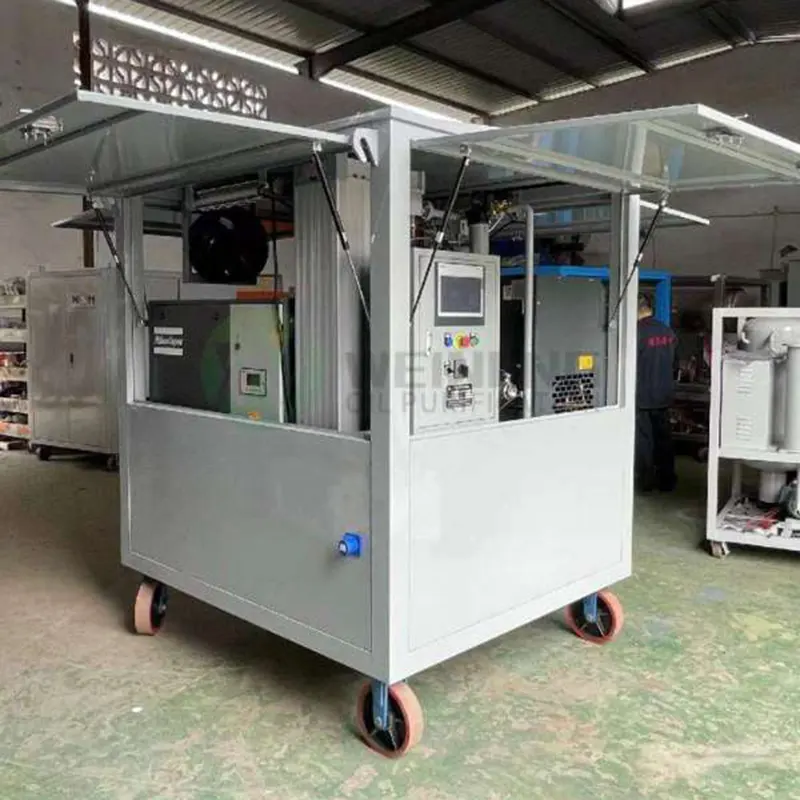

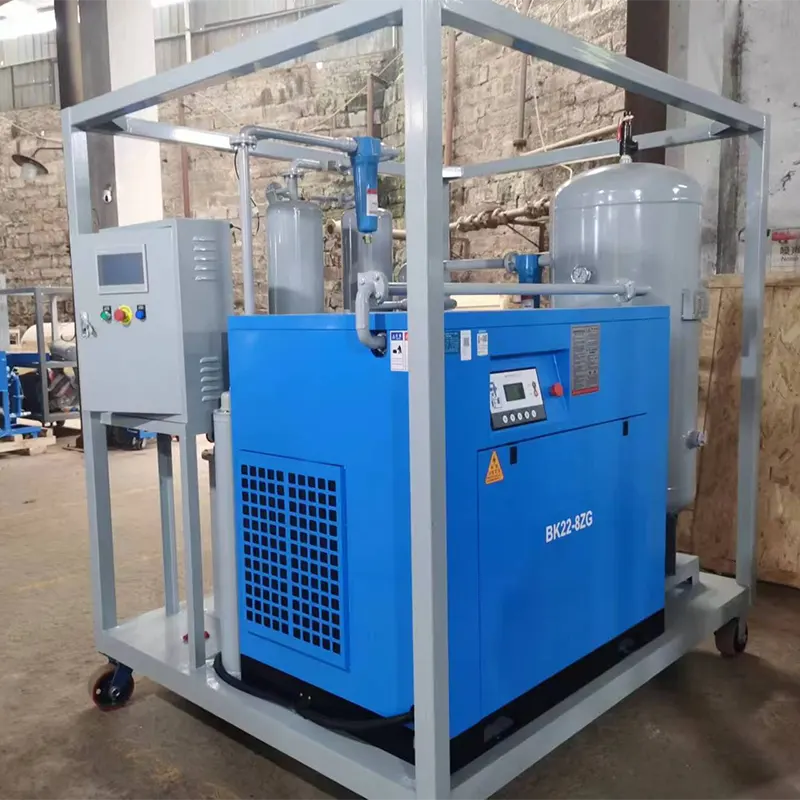

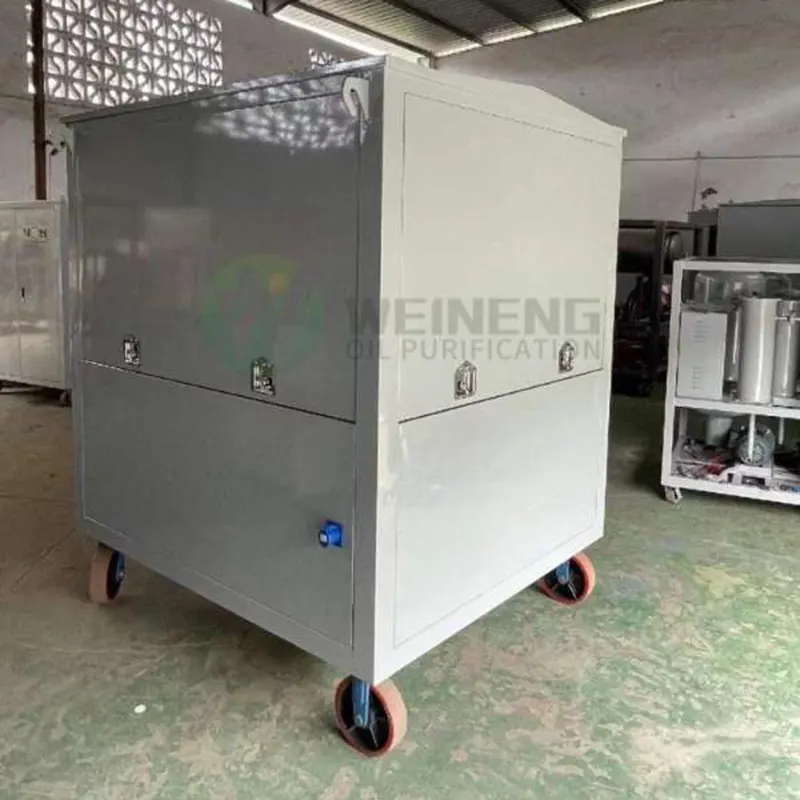

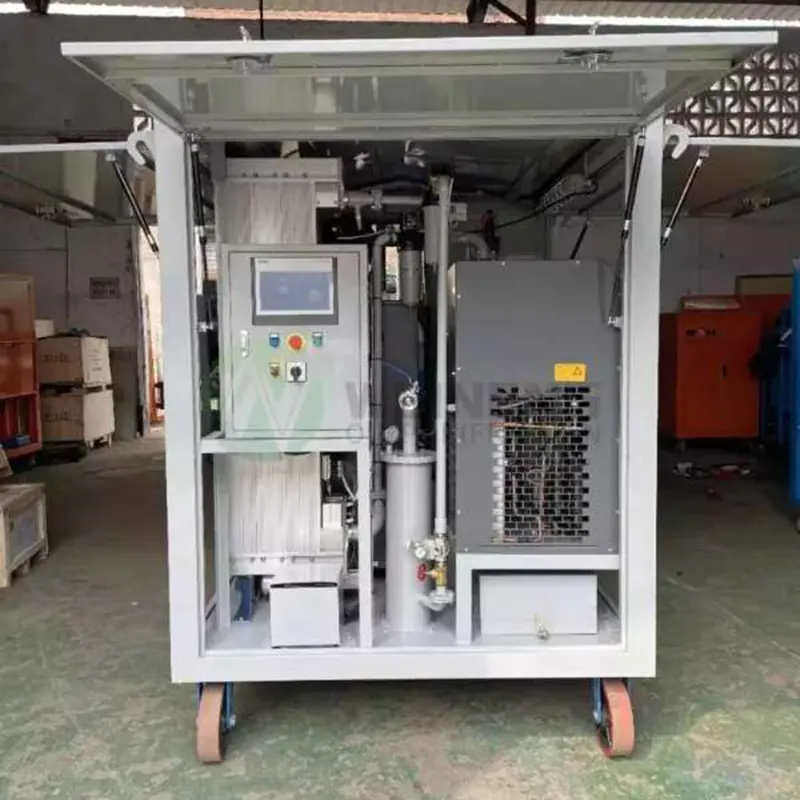

Weineng AD Dry Air Generator

Key Features of Weineng AD Dry Air Generator

Modular design integrating compression, freezing, and adsorption technologies
Large area Duplex 3D Flash Vaporization Technology for fast water evaporation and degassing
PLC intelligent controller with one-click operation for full automation
Extremely low dew point output down to -70°C
Multi-stage filtration system with maximum 0.01μm filtration accuracy
Heat-free automatic adsorbent regeneration system
Low regeneration gas consumption (less than 5%)
Fully automatic drainage system
Comprehensive protection system including phase mismatch, voltage protection, and pressure safety
Equipped with dust removal gun for field maintenance

Technical Specifications of Weineng AD Dry Air Generator

Parameter	Specification
Gas Supply Volume	≥ 200m³/h
Gas Supply Dew Point	≤ -70°C
Working Pressure	0.6~0.8MPa
Air Supply Pressure	0.02-0.8MPa (adjustable)
Filtering Accuracy	0.01μm
Working Environment	Indoor, temperature below 40°C, no condensation
Power Supply	Three-phase three wire 380V/50HZ
Power	25KW
Overall Dimensions	Depends on machine capacity
